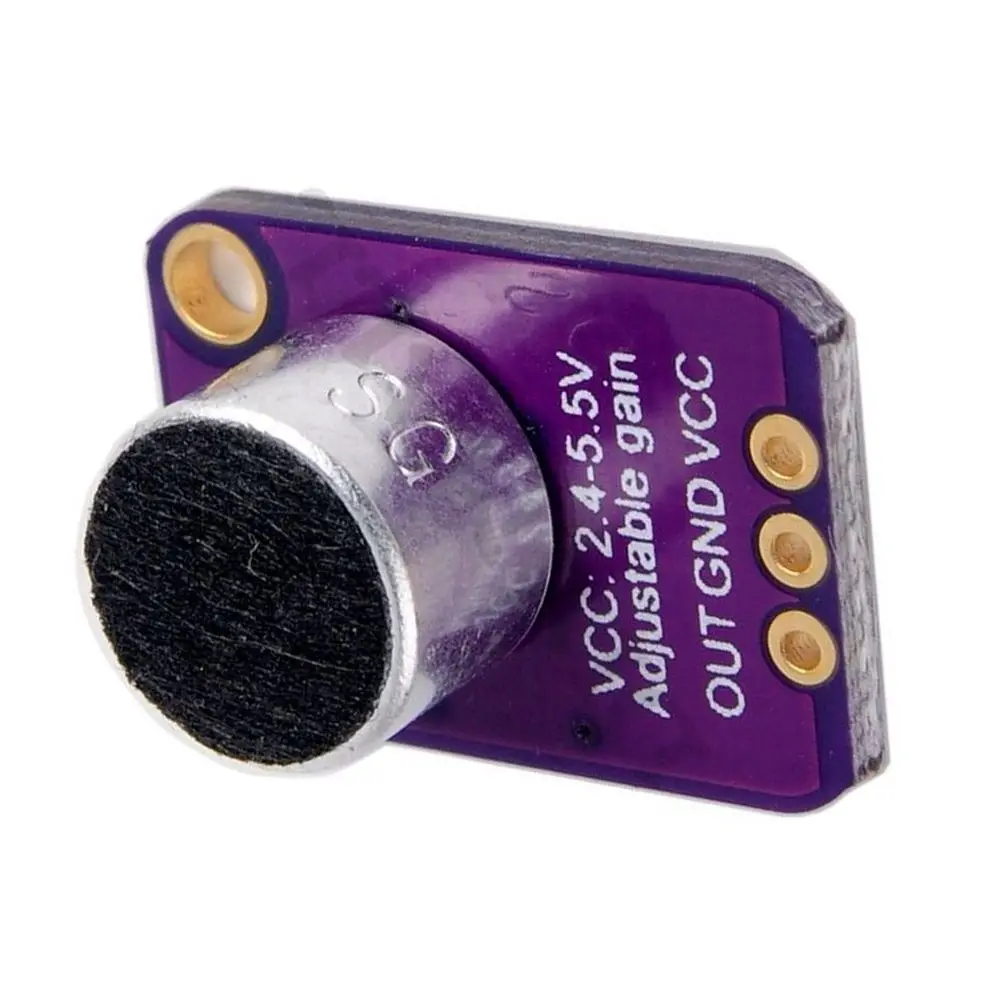

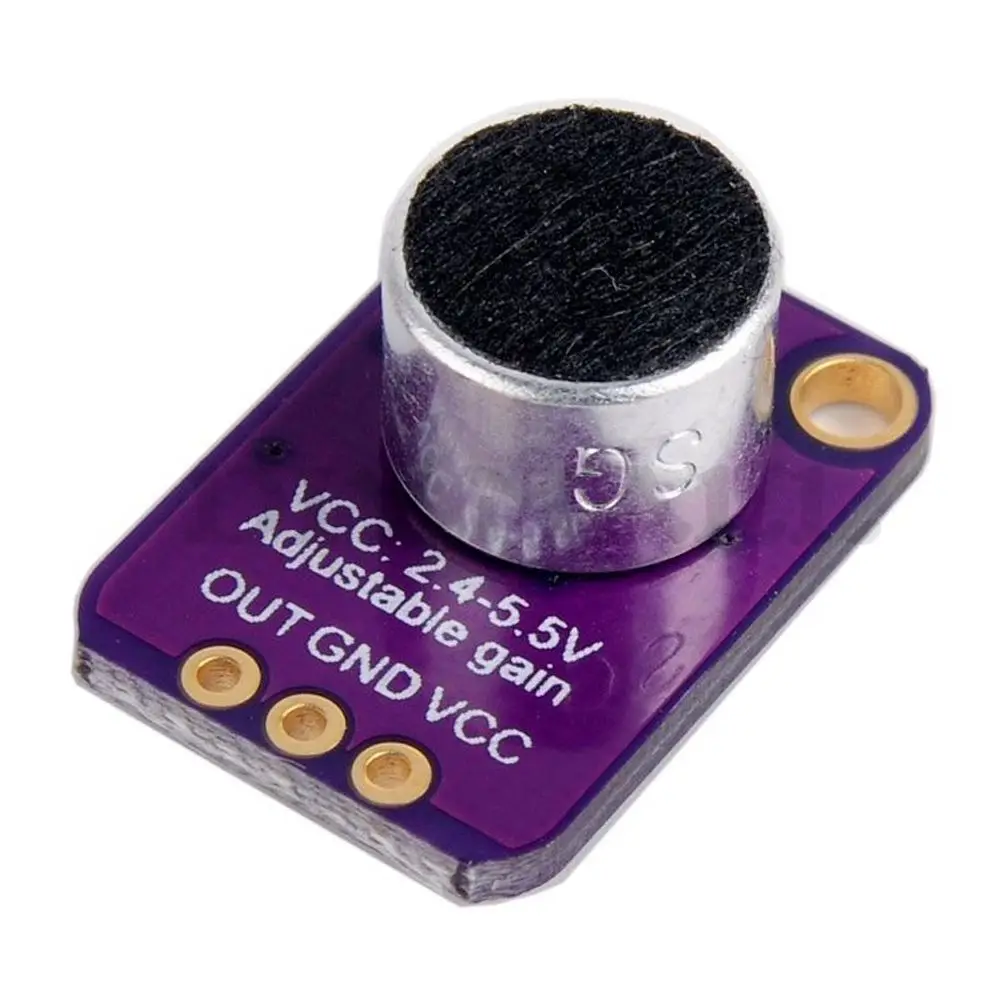

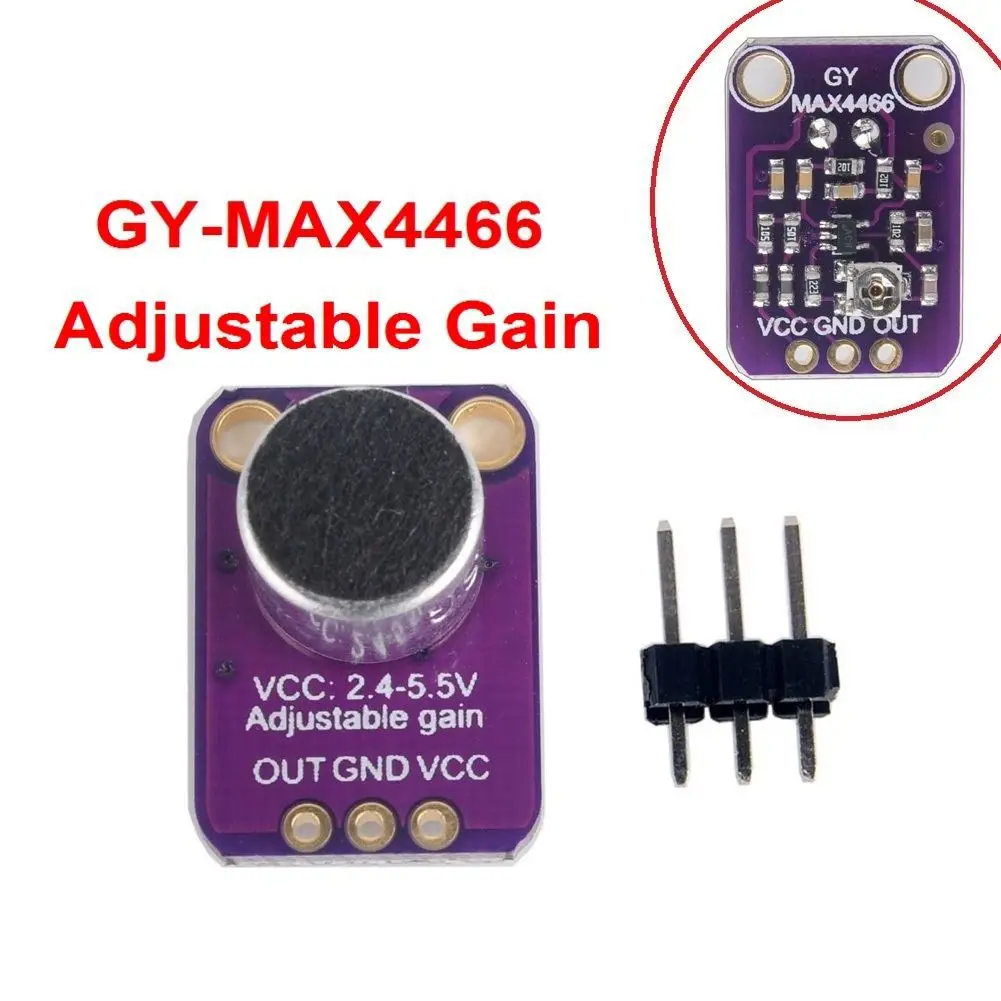

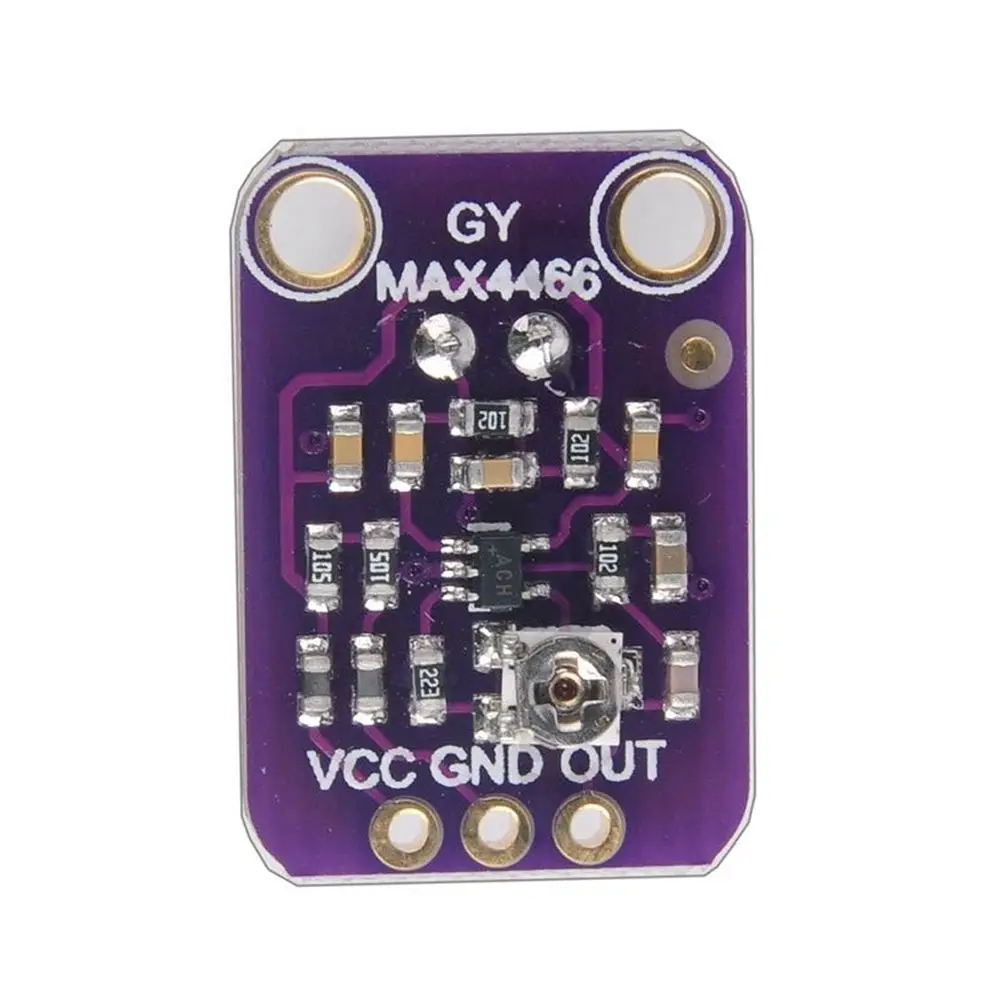

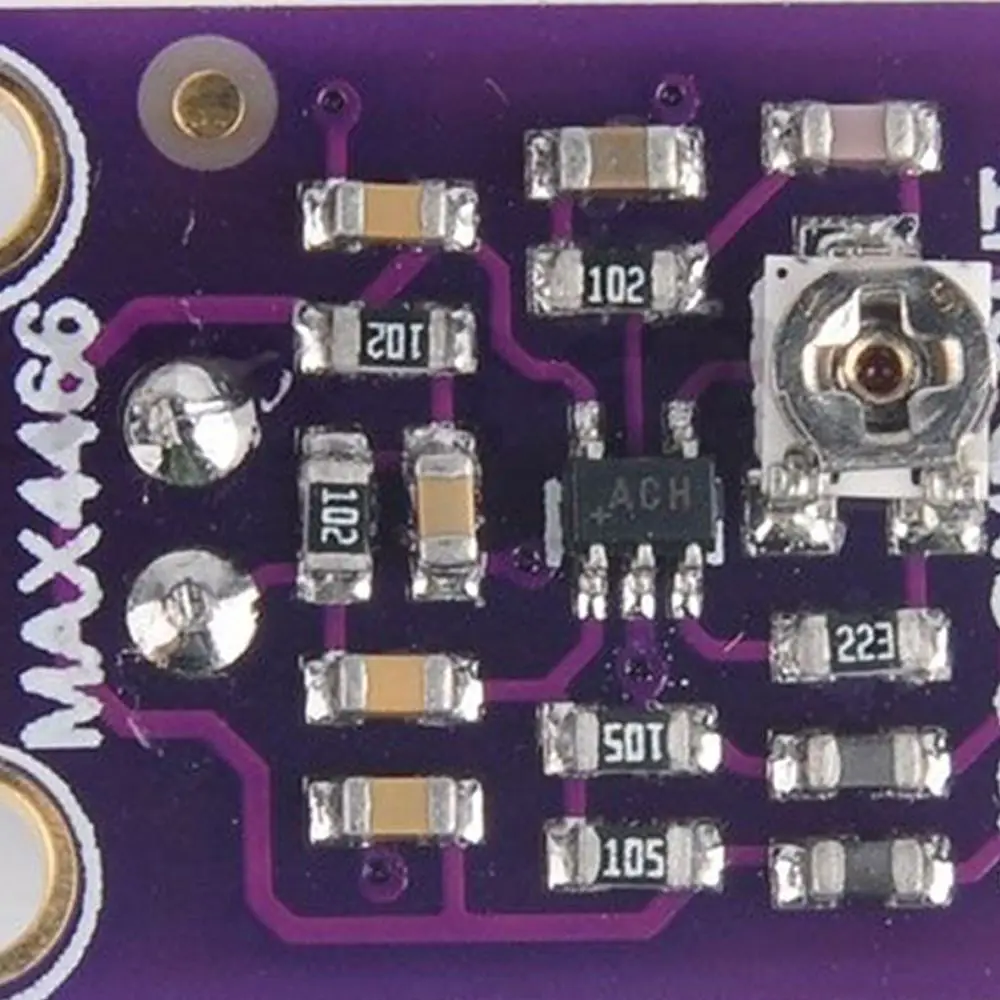

GY-MAX4466 MAX4466 Electret Microphone Amplifier Module Adjustable Gain OUT GND Amplifier Board 2.4-5V DC For Arduino

A tiny!!! Hopefully, that will serve me for a long time. If at all will work.)))

ok all

I did not receive the goods! The seller just says sorry, I should be patient.

Order I received

Store Name: Intelligence Life Store

Normal Price: ~~US $2.61~~

Sale Price: US $1.88 (Discount: 28%)

Spesifications

Transducer: Electret Microphone

Brand Name: Fasdga

Use: Computer Microphone

Style: Hanging Microphones

Polar Patterns: Uni-directional

Package: Yes

Model Number: none

Communication: Wireless

Set Type: Single Microphone

Descriptions

How to use:

connect GND to ground, VCC to 2.4-5VDC.

The audio waveform will come out of the OUT pin.

The output will have a DC bias of VCC/2 so when its perfectly quiet, the voltage will be a steady VCC/2 volts (it is DC coupled).

If the audio equipment you\'re using requires AC coupled audio, place a 100uF capacitor between the output pin and the input of your device.

If you\'re connecting to an audio amplifier that has differential inputs or includes decoupling capacitors, the 100uF cap is not required.

The output pin is not designed to drive speakers or anything but the smallest in-ear headphones - you\'ll need an audio amplifier (such as 3.7W stereo amp) if you want to connect the amp directly to speakers.

If you\'re connecting to a microcontroller pin, you don\'t need an amplifier or decoupling capacitor - connect the OUT pin directly to the microcontroller ADC pin.

For audio-reactive projects, we suggest using an FFT driver library which can take the audio input and \'translate\' it into frequencies.

colour: purple

Material: plastic

Package Contents:

1 X Electret Microphone Amplifier MAX4466
